Partition Manager feedback

JonAbbott · Post by **JonAbbott** » Thu Jun 29, 2023 3:49 pm

IanJeffray wrote: ↑Thu Jun 29, 2023 1:12 pm Oh it definitely does. There's a special !WipeRAM program to nuke the onboard settings when they get too far shot that !IDEForm can't sort them out (weird).

Thanks for that software. It appears to store the drive geometry and settings from !IDEForm in the EEPROM. I'll add the former to the to-do list.

IanJeffray · Post by **IanJeffray** » Fri Jun 30, 2023 10:55 am

JonAbbott wrote: ↑Thu Jun 29, 2023 9:01 am Attached is the EPROM (without CD support) with the patches I've implemented, should you want to try it.

This doesn't work on real hardware for me - the podule doesn't even show up in *podules with this image in its ROM. Possibly due to the hardware I have being "Iss 2" and using a 27C512 (64KByte) EPROM.

IanJeffray · Post by **IanJeffray** » Wed Jul 05, 2023 7:19 pm

More bad news from me I'm afraid. I tried the latest PM 0.99 with a Cumana SCSI card. The machine locks up hard solid as soon as SCSIFS scanning begins. Nothing useful in the debug.txt:

Code: Select all

PartMgr v0.99 28/06/23 DEBUG
OS Version=310
FileCore Version=241
FileSwitch Version=208
ADFS found
IDEFS found, detected as Simtec v1.30
SCSIFS found
BASIC END=4CA98

read_drives
===========

IDEFS
-----
Potentially 4 physical drives

DiscOp 3/IDENTIFY response:
Word   :    0    1    2    3    4    5    6    7    8    9
000000 : 044A 3FFF C837 000F 0000 0000 003F 01D1 C000 0000 J..?7.......?.......
000010 : 3230 3139 3030 3030 3831 3039 2020 2020 2020 2020 029100001890
000020 : 0002 0002 0000 3230 3135 3038 3037 4859 5045 5244 ......02518070YHEPDR
000030 : 4953 4B20 2053 5344 2020 2020 2020 2020 2020 2020 SI KS DS
000040 : 2020 2020 2020 2020 2020 2020 2020 8001 0000 0F00               ......
000050 : 4000 0200 0000 0007 3FFF 000F 003F 3C4F 00EC 0100 .@.......?..?.O<....
000060 : C000 01D1 0000 0407 0003 0078 0078 0078 0078 0000 ..........x.x.x.x...
000070 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000080 : 03FC 0000 7029 7400 4000 7009 0400 4000 007F 0000 ....)p.t.@.p...@....
000090 : 0000 0000 0000 604F 0000 0000 0000 0000 0000 0000 ......O`............
000100 : C000 01D1 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000110 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000120 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 4859 ..................YH
000130 : 5045 5244 4953 4B20 2053 5344 0000 0000 0000 0000 EPDRSI KS DS........
000140 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000150 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000160 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000170 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000180 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000190 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000200 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000210 : 0000 0000 0000 0000 0000 0000 0000 0001 0000 0000 ....................
000220 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000230 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000240 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000250 : 0000 0000 0000 0000 0000 D6A5                     ............

Magnetic media drive
Geometry in words 54-58 are reported as valid
  Cylinders=16383 Heads=15 Sectors=63
Drive supports 48-bit LBA addressing
Physical drive is IDEFS 2
Model      =HYPERDISK  SSD
LBA Size   =512
Size in LBA=&001D1C000
Removable  =0
Drive supports CHS to LBA mapping and will be limited to 32299 cylinders as the filesystem is cylinder based.  Switching to CHS addressing with Partition Manager

SCSIFS
------

IanJeffray · Post by **IanJeffray** » Wed Jul 05, 2023 7:22 pm

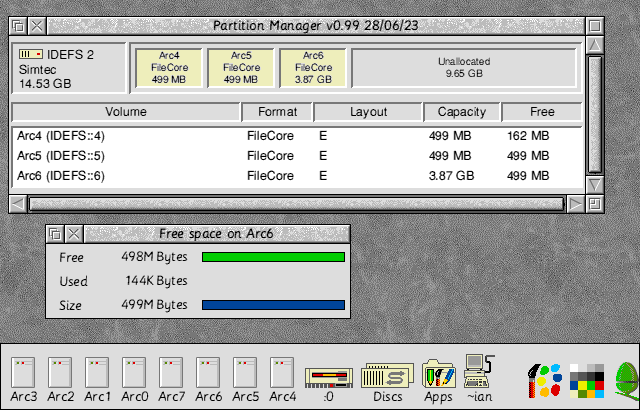

Same machine as just mentioned, if I remove the SCSI podule, I notice the Simtec's all messed up. I'm sure this worked when testing previously. Wrong number of drives and wrong sizes... compare iconbar to PM window.

: simtec.png (22.89 KiB) Viewed 5810 times

IanJeffray · Post by **IanJeffray** » Wed Jul 05, 2023 7:24 pm

Here's the debug from the run without the SCSI present:

Code: Select all

PartMgr v0.99 28/06/23 DEBUG
OS Version=310
FileCore Version=241
FileSwitch Version=208
ADFS found
IDEFS found, detected as Simtec v1.30
BASIC END=4A2B8

read_drives
===========

IDEFS
-----
Potentially 4 physical drives

DiscOp 3/IDENTIFY response:
Word   :    0    1    2    3    4    5    6    7    8    9
000000 : 044A 3FFF C837 000F 0000 0000 003F 01D1 C000 0000 J..?7.......?.......
000010 : 3230 3139 3030 3030 3831 3039 2020 2020 2020 2020 029100001890
000020 : 0002 0002 0000 3230 3135 3038 3037 4859 5045 5244 ......02518070YHEPDR
000030 : 4953 4B20 2053 5344 2020 2020 2020 2020 2020 2020 SI KS DS
000040 : 2020 2020 2020 2020 2020 2020 2020 8001 0000 0F00               ......
000050 : 4000 0200 0000 0007 3FFF 000F 003F 3C4F 00EC 0100 .@.......?..?.O<....
000060 : C000 01D1 0000 0407 0003 0078 0078 0078 0078 0000 ..........x.x.x.x...
000070 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000080 : 03FC 0000 7029 7400 4000 7009 0400 4000 007F 0000 ....)p.t.@.p...@....
000090 : 0000 0000 0000 604F 0000 0000 0000 0000 0000 0000 ......O`............
000100 : C000 01D1 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000110 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000120 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 4859 ..................YH
000130 : 5045 5244 4953 4B20 2053 5344 0000 0000 0000 0000 EPDRSI KS DS........
000140 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000150 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000160 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000170 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000180 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000190 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000200 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000210 : 0000 0000 0000 0000 0000 0000 0000 0001 0000 0000 ....................
000220 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000230 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000240 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000250 : 0000 0000 0000 0000 0000 D6A5                     ............

Magnetic media drive
Geometry in words 54-58 are reported as valid
  Cylinders=16383 Heads=15 Sectors=63
Drive supports 48-bit LBA addressing
Physical drive is IDEFS 2
Model      =HYPERDISK  SSD
LBA Size   =512
Size in LBA=&001D1C000
Removable  =0
Drive supports CHS to LBA mapping and will be limited to 32299 cylinders as the filesystem is cylinder based.  Switching to CHS addressing with Partition Manager

add_partitions_IDEFS 2
======================
IDEFS discop_Simtec(0,1,&6,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 34 0D 00 00 00   ..0...A480_4....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 00 00 00 42 00 30 FB   ............B.0.

Partition 0 found
Drive: 0  Partition: 0
IDEFS discop_Simtec(0,1,&6,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 34 0D 00 00 00   ..0...A480_4....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 42 00 30 FB   ............B.0.

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&7CC80,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : EB 00 80 01 09 FF FF 00 0F 0A 00 02 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 1D 00 41 72 63 34 20 20   ......0...Arc4
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc4
Matching FileCore disc found as IDEFS::4
OS_FSControl 55 failed, trying 49
Free=&00005123E
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&F9806,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 32 0D 00 00 00   ..0...A480_2....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 00 00 00 42 00 30 F9   ............B.0.

Partition 1 found
Drive: 0  Partition: 1
IDEFS discop_Simtec(0,1,&F9806,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 32 0D 00 00 00   ..0...A480_2....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 42 00 30 F9   ............B.0.

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&176480,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 1C 08 82 00 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 03 00 41 72 63 35 20 20   ......0...Arc5
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc5
Matching FileCore disc found as IDEFS::5
OS_FSControl 55 failed, trying 49
Free=&0000F96C0
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&1F3006,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 36 0D 00 00 00   ..0...A480_6....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 0B   ............B...

Partition 2 found
Drive: 0  Partition: 2
IDEFS discop_Simtec(0,1,&1F3006,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 36 0D 00 00 00   ..0...A480_6....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 0B   ............B...

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&26FC80,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 14 08 82 FF 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 01 00 41 72 63 36 20 20   ......0...Arc6
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc6
Matching FileCore disc found as IDEFS::6
OS_FSControl 55 failed, trying 49
Free=&0000F96E0
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&9BF006,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 01 00 59 E3 D8 A1 1F 05 11 00 00 0A 09 B0 A0 E1   ..Y.............
&000010 : E0 FF FF EB 04 B0 17 E5 E8 A1 1F E5 0C 00 00 EA   ................
&000020 : 01 B0 8B E2 0B 90 A0 E1 B3 00 00 EB 00 08 A7 E8   ................
&000030 : 39 9B A0 E1 01 00 59 E3 04 A2 1F 05 04 00 00 0A   9.....Y.........
&000040 : 09 B0 A0 E1 D3 FF FF EB 04 B0 17 E5 14 A2 1F E5   ................
&000050 : FF FF FF EA 8B A3 8A E1 04 A0 81 E4 00 0C 37 E9   ..............7.
&000060 : 0A F0 B0 E1 0B A0 B0 E1 00 B0 A0 E3 01 B0 8B 12   ................
&000070 : AA A0 B0 11 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11   ................
&000080 : 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01   ................
&000090 : 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01 01 B0 8B 12   ................
&0000A0 : AA A0 B0 11 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11   ................
&0000B0 : 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01   ................
&0000C0 : 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01 01 B0 8B 12   ................
&0000D0 : AA A0 B0 11 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11   ................
&0000E0 : 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01   ................
&0000F0 : 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01 01 B0 8B 12   ................
&000100 : AA A0 B0 11 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11   ................
&000110 : 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01   ................
&000120 : 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01 01 B0 8B 12   ................
&000130 : AA A0 B0 11 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11   ................
&000140 : 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01   ................
&000150 : 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01 01 B0 8B 12   ................
&000160 : AA A0 B0 11 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11   ................
&000170 : 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01   ................
&000180 : 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01 01 B0 8B 12   ................
&000190 : AA A0 B0 11 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11   ................
&0001A0 : 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01   ................
&0001B0 : 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01 01 B0 8B 12   ................
&0001C0 : AA A0 B0 11 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11   ................
&0001D0 : 0E F0 B0 01 01 B0 8B 12 AA A0 B0 11 0E F0 B0 01   ................
&0001E0 : 01 B0 8B E2 0E F0 B0 E1 00 C0 A0 E3 FF A0 DB E3   ................
&0001F0 : 3F 00 00 0A 6B BF A0 E1 01 CC 8C E2 FF A0 DB E3   ?...k...........

Partition 3 invalid

Adding unallocated space
 Start of area=0009BF000
    Drive size=001D1BCBB
Max accessible=100000000
Drive size below max

Unallocated block
-----------------
  Start LBA = &09BF000
Size in LBA = &0135CCBB

BASIC END=4B484

JonAbbott · Post by **JonAbbott** » Fri Jul 07, 2023 11:37 am

IanJeffray wrote: ↑Wed Jul 05, 2023 7:19 pm I tried the latest PM 0.99 with a Cumana SCSI card. The machine locks up hard solid as soon as SCSIFS scanning begins. Nothing useful in the debug.txt:

I've added some additional debug output - SCSI_Initialise 2 or 3 has not returned by the looks of it.

Could you upload a *PoduleSave of the Podule ROM please.

IanJeffray wrote: ↑Wed Jul 05, 2023 7:22 pm I notice the Simtec's all messed up. I'm sure this worked when testing previously.

I've reverted the code to an earlier version, see if its correct with today's build

IanJeffray · Post by **IanJeffray** » Fri Jul 07, 2023 2:02 pm

JonAbbott wrote: ↑Fri Jul 07, 2023 11:37 am
IanJeffray wrote: ↑Wed Jul 05, 2023 7:19 pm I tried the latest PM 0.99 with a Cumana SCSI card. The machine locks up hard solid as soon as SCSIFS scanning begins. Nothing useful in the debug.txt:
I've added some additional debug output - SCSI_Initialise 2 or 3 has not returned by the looks of it.

Could you upload a *PoduleSave of the Podule ROM please.

Better than that : https://stardot.org.uk/forums/viewtopic ... 02#p372302

But ... this is now working as expected! All devices/partitions appearing as expected in PM.

JonAbbott wrote: ↑Fri Jul 07, 2023 11:37 am
IanJeffray wrote: ↑Wed Jul 05, 2023 7:22 pm I notice the Simtec's all messed up. I'm sure this worked when testing previously.
I've reverted the code to an earlier version, see if its correct with today's build

That appears to work perfectly.

IanJeffray · Post by **IanJeffray** » Fri Jul 07, 2023 2:05 pm

Debug output, FWIW. All good with today's version!...

Code: Select all

PartMgr v0.99 07/07/23 DEBUG
OS Version=310
FileCore Version=241
FileSwitch Version=208
ADFS found
IDEFS found, detected as Simtec v1.30
SCSIFS found
BASIC END=4CAD8

read_drives
===========

IDEFS
-----
Potentially 4 physical drives

DiscOp 3/IDENTIFY response:
Word   :    0    1    2    3    4    5    6    7    8    9
000000 : 044A 3FFF C837 000F 0000 0000 003F 01D1 C000 0000 J..?7.......?.......
000010 : 3230 3139 3030 3030 3831 3039 2020 2020 2020 2020 029100001890
000020 : 0002 0002 0000 3230 3135 3038 3037 4859 5045 5244 ......02518070YHEPDR
000030 : 4953 4B20 2053 5344 2020 2020 2020 2020 2020 2020 SI KS DS
000040 : 2020 2020 2020 2020 2020 2020 2020 8001 0000 0F00               ......
000050 : 4000 0200 0000 0007 3FFF 000F 003F 3C4F 00EC 0100 .@.......?..?.O<....
000060 : C000 01D1 0000 0407 0003 0078 0078 0078 0078 0000 ..........x.x.x.x...
000070 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000080 : 03FC 0000 7029 7400 4000 7009 0400 4000 007F 0000 ....)p.t.@.p...@....
000090 : 0000 0000 0000 604F 0000 0000 0000 0000 0000 0000 ......O`............
000100 : C000 01D1 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000110 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000120 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 4859 ..................YH
000130 : 5045 5244 4953 4B20 2053 5344 0000 0000 0000 0000 EPDRSI KS DS........
000140 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000150 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000160 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000170 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000180 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000190 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000200 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000210 : 0000 0000 0000 0000 0000 0000 0000 0001 0000 0000 ....................
000220 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000230 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000240 : 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ....................
000250 : 0000 0000 0000 0000 0000 D6A5                     ............

Magnetic media drive
Geometry in words 54-58 are reported as valid
  Cylinders=16383 Heads=15 Sectors=63
Drive supports 48-bit LBA addressing
Physical drive is IDEFS 2
Model      =HYPERDISK  SSD
LBA Size   =512
Size in LBA=&001D1C000
Removable  =0
Drive supports CHS to LBA mapping and will be limited to 32299 cylinders as the filesystem is cylinder based.  Switching to CHS addressing with Partition Manager

SCSIFS
------
Trying SCSI_Initialise,2,0
  error=0
Trying SCSI_Initialise,3,0
  error=0
SCSI 0:0 found, reported as type &0
SCSI_Op &1000000,16,[&9E,&00,&40],..,&40
SCSI_Op failed
Physical drive is SCSI 0:0
Model      =BlueSCSI HARDDRIVE
LBA Size   =512
Size in LBA=&0000811A7
Removable  =0
Trying SCSI_Initialise,2,1
  error=0
Trying SCSI_Initialise,3,1
  error=0
SCSI 0:1 found, reported as type &0
SCSI_Op &1000001,16,[&9E,&00,&40],..,&40
SCSI_Op failed
Physical drive is SCSI 0:1
Model      =BlueSCSI HARDDRIVE
LBA Size   =512
Size in LBA=&00003A088
Removable  =0
Trying SCSI_Initialise,2,2
  error=0
Trying SCSI_Initialise,3,2
  error=0
SCSI 0:2 found, reported as type &0
SCSI_Op &1000002,16,[&9E,&00,&40],..,&40
SCSI_Op failed
Physical drive is SCSI 0:2
Model      =BlueSCSI HARDDRIVE
LBA Size   =512
Size in LBA=&00003203F
Removable  =0
Trying SCSI_Initialise,2,3
  error=0
Trying SCSI_Initialise,3,3
  error=0
SCSI 0:3 found, reported as type &0
SCSI_Op &1000003,16,[&9E,&00,&40],..,&40
SCSI_Op failed
Physical drive is SCSI 0:3
Model      =BlueSCSI HARDDRIVE
LBA Size   =512
Size in LBA=&00003203F
Removable  =0
Trying SCSI_Initialise,2,4
  error=0
Trying SCSI_Initialise,3,4
  error=0
SCSI 0:4 found, reported as type &5
Probably a CD-ROM
Trying SCSI_Initialise,2,5
  error=0
Trying SCSI_Initialise,3,5
  error=0
SCSI 0:5 found, reported as type &5
Probably a CD-ROM
Trying SCSI_Initialise,2,6
  error=0
Trying SCSI_Initialise,3,6
  error=0
SCSI 0:6 found, reported as type &5
Probably a CD-ROM
Trying SCSI_Initialise,2,7
  error=0
SCSI 0:7 found, reported as type &B
Unknown device
Trying SCSI_Initialise,2,8
  error=1
Trying SCSI_Initialise,2,9
  error=1
Trying SCSI_Initialise,2,10
  error=1
Trying SCSI_Initialise,2,11
  error=1
Trying SCSI_Initialise,2,12
  error=1
Trying SCSI_Initialise,2,13
  error=1
Trying SCSI_Initialise,2,14
  error=1
Trying SCSI_Initialise,2,15
  error=1
Trying SCSI_Initialise,2,16
  error=1
Trying SCSI_Initialise,2,17
  error=1
Trying SCSI_Initialise,2,18
  error=1
Trying SCSI_Initialise,2,19
  error=1
Trying SCSI_Initialise,2,20
  error=1
Trying SCSI_Initialise,2,21
  error=1
Trying SCSI_Initialise,2,22
  error=1
Trying SCSI_Initialise,2,23
  error=1
Trying SCSI_Initialise,2,24
  error=1
Trying SCSI_Initialise,2,25
  error=1
Trying SCSI_Initialise,2,26
  error=1
Trying SCSI_Initialise,2,27
  error=1
Trying SCSI_Initialise,2,28
  error=1
Trying SCSI_Initialise,2,29
  error=1
Trying SCSI_Initialise,2,30
  error=1
Trying SCSI_Initialise,2,31
  error=1
------

add_partitions_IDEFS 2
======================
IDEFS discop_Simtec(0,1,&6,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 34 0D 00 00 00   ..0...A480_4....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 00 00 00 42 00 30 FB   ............B.0.

Partition 0 found
IDEFS discop_Simtec(0,1,&6,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 34 0D 00 00 00   ..0...A480_4....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 42 00 30 FB   ............B.0.

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&7CC80,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : E0 00 80 01 09 FF FF 00 0F 0A 00 02 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 24 00 41 72 63 34 20 20   ......0.$.Arc4
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc4
Matching FileCore disc found as IDEFS::4
OS_FSControl 55 failed, trying 49
Free=&0000513C2
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&F9806,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 32 0D 00 00 00   ..0...A480_2....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 00 00 00 42 00 30 F9   ............B.0.

Partition 1 found
IDEFS discop_Simtec(0,1,&F9806,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 32 0D 00 00 00   ..0...A480_2....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 42 00 30 F9   ............B.0.

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&176480,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 1C 08 82 00 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 03 00 41 72 63 35 20 20   ......0...Arc5
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc5
Matching FileCore disc found as IDEFS::5
OS_FSControl 55 failed, trying 49
Free=&0000F96C0
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&1F3006,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 36 0D 00 00 00   ..0...A480_6....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 0B   ............B...

Partition 2 found
IDEFS discop_Simtec(0,1,&1F3006,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 36 0D 00 00 00   ..0...A480_6....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 0B   ............B...

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&26FC80,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 14 08 82 FF 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 01 00 41 72 63 36 20 20   ......0...Arc6
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc6
Matching FileCore disc found as IDEFS::6
OS_FSControl 55 failed, trying 49
Free=&0000F96E0
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&2EC806,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 37 0D 00 00 00   ..0...A480_7....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 0C   ............B...

Partition 3 found
IDEFS discop_Simtec(0,1,&2EC806,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 37 0D 00 00 00   ..0...A480_7....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 0C   ............B...

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&369480,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 15 08 82 FF 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 01 00 41 72 63 37 20 20   ......0...Arc7
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc7
Matching FileCore disc found as IDEFS::7
OS_FSControl 55 failed, trying 49
Free=&0000F96E0
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&3E6006,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 30 0D 00 00 00   ..0...A480_0....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 05   ............B...

Partition 4 found
IDEFS discop_Simtec(0,1,&3E6006,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 30 0D 00 00 00   ..0...A480_0....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 05   ............B...

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&462C80,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 1E 08 82 00 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 02 00 41 72 63 30 20 20   ......0...Arc0
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc0
Matching FileCore disc found as IDEFS::0
OS_FSControl 55 failed, trying 49
Free=&0000F9650
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&4DF806,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 31 0D 00 00 00   ..0...A480_1....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 06   ............B...

Partition 5 found
IDEFS discop_Simtec(0,1,&4DF806,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 31 0D 00 00 00   ..0...A480_1....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 06   ............B...

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&55C480,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 1F 08 82 FF 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 01 00 41 72 63 31 20 20   ......0...Arc1
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc1
Matching FileCore disc found as IDEFS::1
OS_FSControl 55 failed, trying 49
Free=&0000F96E0
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&5D9006,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 32 0D 00 00 00   ..0...A480_2....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 07   ............B...

Partition 6 found
IDEFS discop_Simtec(0,1,&5D9006,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 32 0D 00 00 00   ..0...A480_2....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 07   ............B...

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&655C80,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 18 08 82 FF 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 01 00 41 72 63 32 20 20   ......0...Arc2
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc2
Matching FileCore disc found as IDEFS::2
OS_FSControl 55 failed, trying 49
Free=&0000F96E0
OS Size in LBA=&0000F9800
IDEFS discop_Simtec(0,1,&6D2806,&0,..,&200)
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 00 00 00 20 00 00 00 00 00 00 00 00 00 00 00 00   ... ............
&000010 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000040 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000050 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000060 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000070 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000080 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000090 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000D0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000E0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0000F0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000100 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000110 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000120 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000130 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000140 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000150 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000160 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000170 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000180 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000190 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001A0 : 00 00 00 00 00 00 00 00 00 00 00 00 FF FF FF FF   ................
&0001B0 : 61 6E 64 79 AD E9 23 57 31 23 EA FD 00 00 00 00   andy..#W1#......
&0001C0 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&0001D0 : 00 00 30 1F 00 00 41 34 38 30 5F 33 0D 00 00 00   ..0...A480_3....
&0001E0 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&0001F0 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 08   ............B...

Partition 7 found
IDEFS discop_Simtec(0,1,&6D2806,&0,..,&200)

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 FF FF 00 0F 0A 00 00 01 7E 20 00 FD 02 00 00   .......... .....
&000010 : 00 00 30 1F 00 00 41 34 38 30 5F 33 0D 00 00 00   ..0...A480_3....
&000020 : CD 0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 C0 7C 00 42 FF FF 08   ............B...

RISC iX not supported on this filesystem
Full DiscRec is in Zone 63 at LBA &7CC80
LBA size in bits=4096 Log2=9
Zone spare bits=32
DiscRec size in bits=480
Log2 bytes per map bit=10

IDEFS discop_Simtec(0,1,&74F480,&0,..,&200)

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 19 08 82 FF 09 FF FF 00 0F 0A 00 00 01 7E 20 00   .............. .
&000010 : FD 02 00 00 00 00 30 1F 01 00 41 72 63 33 20 20   ......0...Arc3
&000020 : 20 20 20 20 CD 0F 00 00 00 00 00 00 00 00 00 00       ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive IDEFS::Arc3
Matching FileCore disc found as IDEFS::3
OS_FSControl 55 failed, trying 49
Free=&0000F96E0
OS Size in LBA=&0000F9800

Adding unallocated space
 Start of area=0007CC000
    Drive size=001D1BCBB
Max accessible=100000000
Unusable area=0007CC000 size 001550000

Unallocated block
-----------------
  Start LBA = &07CC000
Size in LBA = &01550000

read_bytes_SCSIFS(1,&6,&0,..,&200)
SCSI_Op &1000000,10,[&28,&06,&1],..,&200

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 7D 02 00 0D 0A 00 00 00 10 A1 00 21 02 00 00   ............!...
&000010 : 00 50 23 10 00 00 32 35 30 38 5F 30 38 30 37 00   .P#...2508_0807.
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 02 EC 01 07   ................

RISC iX is supported on this filesystem (type=2)
                                              ^^ ^^ ^^
Non-ADFS partition found at cylinder &1EC / LBA &1E078 type 2

read_bytes_SCSIFS(1,&1E078,&0,..,&200)
SCSI_Op &1000000,10,[&28,&01E078,&1],..,&200
Address :        0        4        8        C
&000000 : 4A657320 3B875CC0 0001E079 00059100  seJ.\.;y.......
&000010 : 00000001 746F6F52 64656D00 0000003E ....Root.med>...
&000020 : 00000000 0007717A 0000A02C 00000001 ....zq..,.......
&000030 : 746F6F42 64656D00 0000003E 00000000 Boot.med>.......
&000040 : 00000000 00000000 00000000 6E6E753C ............<unn
&000050 : 64656D61 0000003E 00000000 00000000 amed>...........
&000060 : 00000000 00000000 6E6E753C 64656D61 ........<unnamed
&000070 : 0000003E 00000000 00000000 00000000 >...............
&000080 : 00000000 6E6E753C 64656D61 0000003E ....<unnamed>...
&000090 : 00000000 00000000 00000000 00000000 ................
&0000A0 : 6E6E753C 64656D61 0000003E 00000000 <unnamed>.......

  Unix partition 0 - Root
   start cylinder: 123001 / LBA &1E079
             size: 364800 / LBA &59100
  Unix partition 1 - Boot
   start cylinder: 487802 / LBA &7717A
             size: 41004 / LBA &A02C

Full DiscRec is in Zone 8 at LBA &F230
LBA size in bits=4096 Log2=9
Zone spare bits=161
DiscRec size in bits=480
Log2 bytes per map bit=10

read_bytes_SCSIFS(1,&F230,&0,..,&200)
SCSI_Op &1000000,10,[&28,&0F230,&1],..,&200

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 12 06 82 0A 09 7D 02 00 0D 0A 00 00 00 10 A1 00   ................
&000010 : 21 02 00 00 00 50 23 10 69 00 52 49 53 43 69 58   !....P#.i.RISCiX
&000020 : 61 20 20 20 00 00 00 00 00 00 00 00 00 00 00 00   a   ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive SCSI::RISCiXa
Matching FileCore disc found as SCSI::4
OS_FSControl 55 failed, trying 49
Free=&000017ED0
OS Size in LBA=&0000811A8
read_bytes_SCSIFS(2,&6,&0,..,&200)
SCSI_Op &1000001,10,[&28,&06,&1],..,&200

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 27 04 00 0C 0A 00 00 00 03 6A 00 07 02 00 00   .'........j.....
&000010 : 00 12 41 07 00 00 30 34 30 33 5F 31 39 34 36 00   ..A...0403_1946.
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 02 00 00 39   ...............9

RISC iX is supported on this filesystem (type=2)
                                              ^^ ^^ ^^
Non-ADFS partition found at cylinder &0 / LBA &0 type 2

read_bytes_SCSIFS(2,&0,&0,..,&200)
SCSI_Op &1000001,10,[&28,&00,&1],..,&200
Address :        0        4        8        C
&000000 : 00000000 00000000 00000000 0003A089 ................
&000010 : 00000000 63736952 003A734F 00000000 ....RiscOs:.....
&000020 : 00000000 00000000 00000000 00000000 ................
&000030 : 00000000 00000000 00000000 00000000 ................
&000040 : 00000000 00000000 00000000 00000000 ................
&000050 : 00000000 00000000 00000000 00000000 ................
&000060 : 00000000 00000000 00000000 00000000 ................
&000070 : 00000000 00000000 00000000 00000000 ................
&000080 : 00000000 00000000 00000000 00000000 ................
&000090 : 00000000 00000000 00000000 00000000 ................
&0000A0 : 00000000 00000000 00000000 00000000 ................

Invalid RISC iX partition table

Full DiscRec is in Zone 1 at LBA &1B6C
LBA size in bits=4096 Log2=9
Zone spare bits=106
DiscRec size in bits=480
Log2 bytes per map bit=10

read_bytes_SCSIFS(2,&1B6C,&0,..,&200)
SCSI_Op &1000001,10,[&28,&01B6C,&1],..,&200

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 52 F9 8D 00 09 27 04 00 0C 0A 00 02 00 03 6A 00   R....'........j.
&000010 : 07 02 00 00 00 12 41 07 0E 00 52 49 53 43 69 58   ......A...RISCiX
&000020 : 31 32 31 20 00 00 00 00 00 00 00 00 00 00 00 00   121 ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive SCSI::RISCiX121
Matching FileCore disc found as SCSI::5
OS_FSControl 55 failed, trying 49
Free=&0000014E2
OS Size in LBA=&00003A089
read_bytes_SCSIFS(3,&6,&0,..,&200)
SCSI_Op &1000002,10,[&28,&06,&1],..,&200

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 21 08 00 0C 0A 00 00 00 03 34 00 07 02 00 00   .!........4.....
&000010 : 00 80 40 06 00 00 31 31 31 32 5F 30 39 33 37 00   ..@...1112_0937.
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 02 4E 00 B8   .............N..

RISC iX is supported on this filesystem (type=2)
                                              ^^ ^^ ^^
Non-ADFS partition found at cylinder &4E / LBA &5070 type 2

read_bytes_SCSIFS(3,&5070,&0,..,&200)
SCSI_Op &1000002,10,[&28,&05070,&1],..,&200
Address :        0        4        8        C
&000000 : 4A657320 2D099540 00005071 0000A000  seJ@..-qP......
&000010 : 00000001 746F6F52 64656D00 0000003E ....Root.med>...
&000020 : 00000000 0000F072 00008000 00000001 ....r...........
&000030 : 746F6F42 64656D00 0000003E 00000000 Boot.med>.......
&000040 : 00017073 0001AFCC 00000001 6E6E753C sp..........<unn
&000050 : 64656D61 0000003E 00000000 00000000 amed>...........
&000060 : 00000000 00000000 6E6E753C 64656D61 ........<unnamed
&000070 : 0000003E 00000000 00000000 00000000 >...............
&000080 : 00000000 6E6E753C 64656D61 0000003E ....<unnamed>...
&000090 : 00000000 00000000 00000000 00000000 ................
&0000A0 : 6E6E753C 64656D61 0000003E 00000000 <unnamed>.......

  Unix partition 0 - Root
   start cylinder: 20593 / LBA &5071
             size: 40960 / LBA &A000
  Unix partition 1 - Boot
   start cylinder: 61554 / LBA &F072
             size: 32768 / LBA &8000
  Unix partition 2 - <unnamed>
   start cylinder: 94323 / LBA &17073
             size: 110540 / LBA &1AFCC

Full DiscRec is in Zone 1 at LBA &1BD8
LBA size in bits=4096 Log2=9
Zone spare bits=52
DiscRec size in bits=480
Log2 bytes per map bit=10

read_bytes_SCSIFS(3,&1BD8,&0,..,&200)
SCSI_Op &1000002,10,[&28,&01BD8,&1],..,&200

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : F8 05 82 04 09 21 08 00 0C 0A 00 00 00 03 34 00   .....!........4.
&000010 : 07 02 00 00 00 80 40 06 08 00 31 31 31 32 5F 30   ......@...1112_0
&000020 : 39 33 37 00 00 00 00 00 00 00 00 00 00 00 00 00   937.............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive SCSI::1112_0937
  not found
read_bytes_SCSIFS(4,&6,&0,..,&200)
SCSI_Op &1000003,10,[&28,&06,&1],..,&200

Boot DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 09 21 08 00 0C 0A 00 00 00 03 34 00 07 02 00 00   .!........4.....
&000010 : 00 80 40 06 00 00 33 30 31 32 5F 30 33 30 36 00   ..@...3012_0306.
&000020 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 02 3F 00 A0   .............?..

RISC iX is supported on this filesystem (type=2)
                                              ^^ ^^ ^^
Non-ADFS partition found at cylinder &3F / LBA &40F8 type 2

read_bytes_SCSIFS(4,&40F8,&0,..,&200)
SCSI_Op &1000003,10,[&28,&040F8,&1],..,&200
Address :        0        4        8        C
&000000 : 4A657320 277D59C0 000040F9 00029F58  seJ.Y.'.@..X...
&000010 : 00000001 746F6F52 64656D00 0000003E ....Root.med>...
&000020 : 00000000 0002E052 00003FEC 00000001 ....R....?......
&000030 : 70617753 64656D00 0000003E 00000000 Swap.med>.......
&000040 : 00000000 00000000 00000000 6E6E553C ............<Unn
&000050 : 64656D61 0000003E 00000000 00000000 amed>...........
&000060 : 00000000 00000000 6E6E553C 64656D61 ........<Unnamed
&000070 : 0000003E 00000000 00000000 00000000 >...............
&000080 : 00000000 6E6E553C 64656D61 0000003E ....<Unnamed>...
&000090 : 00000000 00000000 00000000 00000000 ................
&0000A0 : 6E6E553C 64656D61 0000003E 00000000 <Unnamed>.......

  Unix partition 0 - Root
   start cylinder: 16633 / LBA &40F9
             size: 171864 / LBA &29F58
  Unix partition 1 - Swap
   start cylinder: 188498 / LBA &2E052
             size: 16364 / LBA &3FEC

Full DiscRec is in Zone 1 at LBA &1BD8
LBA size in bits=4096 Log2=9
Zone spare bits=52
DiscRec size in bits=480
Log2 bytes per map bit=10

read_bytes_SCSIFS(4,&1BD8,&0,..,&200)
SCSI_Op &1000003,10,[&28,&01BD8,&1],..,&200

Full DiscRec:
Address :  0  1  2  3  4  5  6  7  8  9  A  B  C  D  E  F
&000000 : 68 05 82 0D 09 21 08 00 0C 0A 00 02 00 03 34 00   h....!........4.
&000010 : 07 02 00 00 00 80 40 06 10 00 52 69 73 63 A0 69   ......@...Risc.i
&000020 : 58 20 20 20 00 00 00 00 00 00 00 00 00 00 00 00   X   ............
&000030 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00   ................

Searching for mounted drive SCSI::Risc iX
  not found
BASIC END=4E198

JonAbbott · Post by **JonAbbott** » Fri Jul 07, 2023 3:04 pm

IanJeffray wrote: ↑Fri Jul 07, 2023 2:02 pm Better than that : https://stardot.org.uk/forums/viewtopic ... 02#p372302

But ... this is now working as expected! All devices/partitions appearing as expected in PM.

Thanks for the link.

I've not changed any code to resolve the SCSI lock-up, have you changed the attached devices?

IanJeffray · Post by **IanJeffray** » Fri Jul 07, 2023 3:35 pm

JonAbbott wrote: ↑Fri Jul 07, 2023 3:04 pm I've not changed any code to resolve the SCSI lock-up, have you changed the attached devices?

It got removed from the machine and put back, that's all. Same BlueSCSI setup. Same RISC OS configuration.

forums.jaspp.org.uk

Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback

Re: Partition Manager feedback
